Description

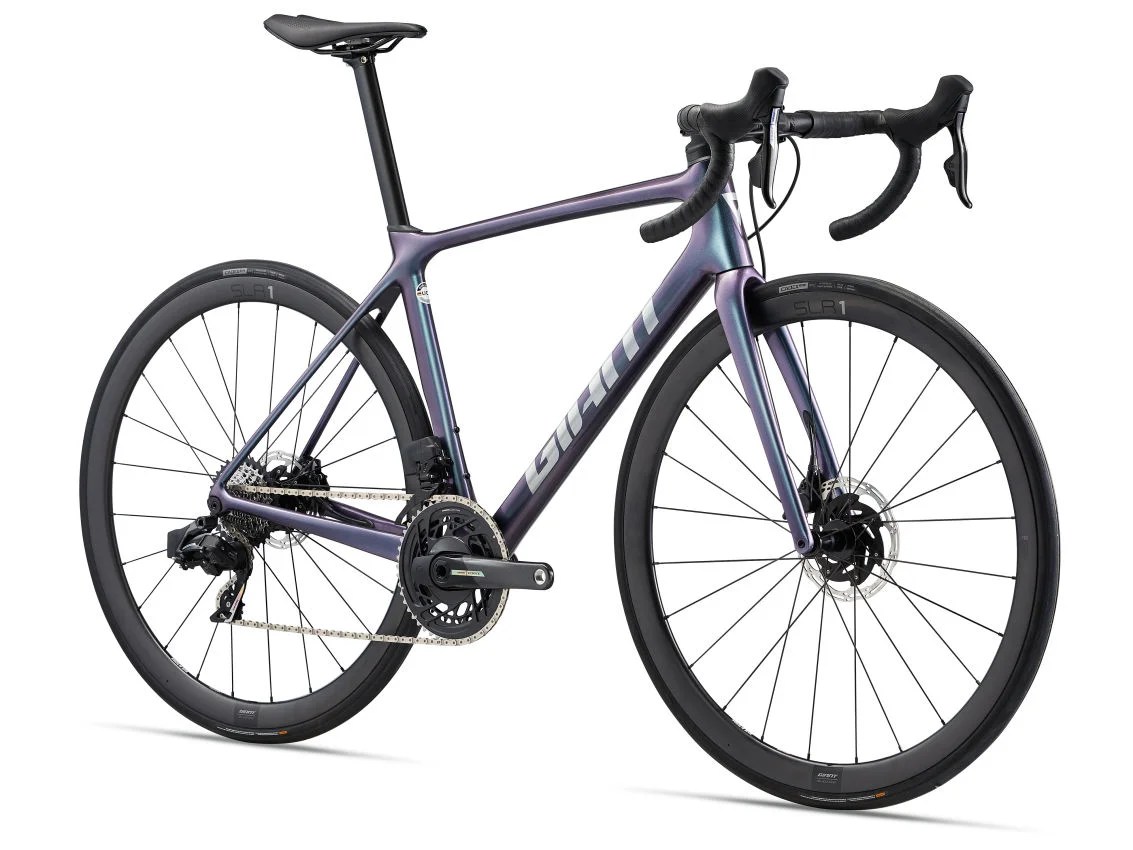

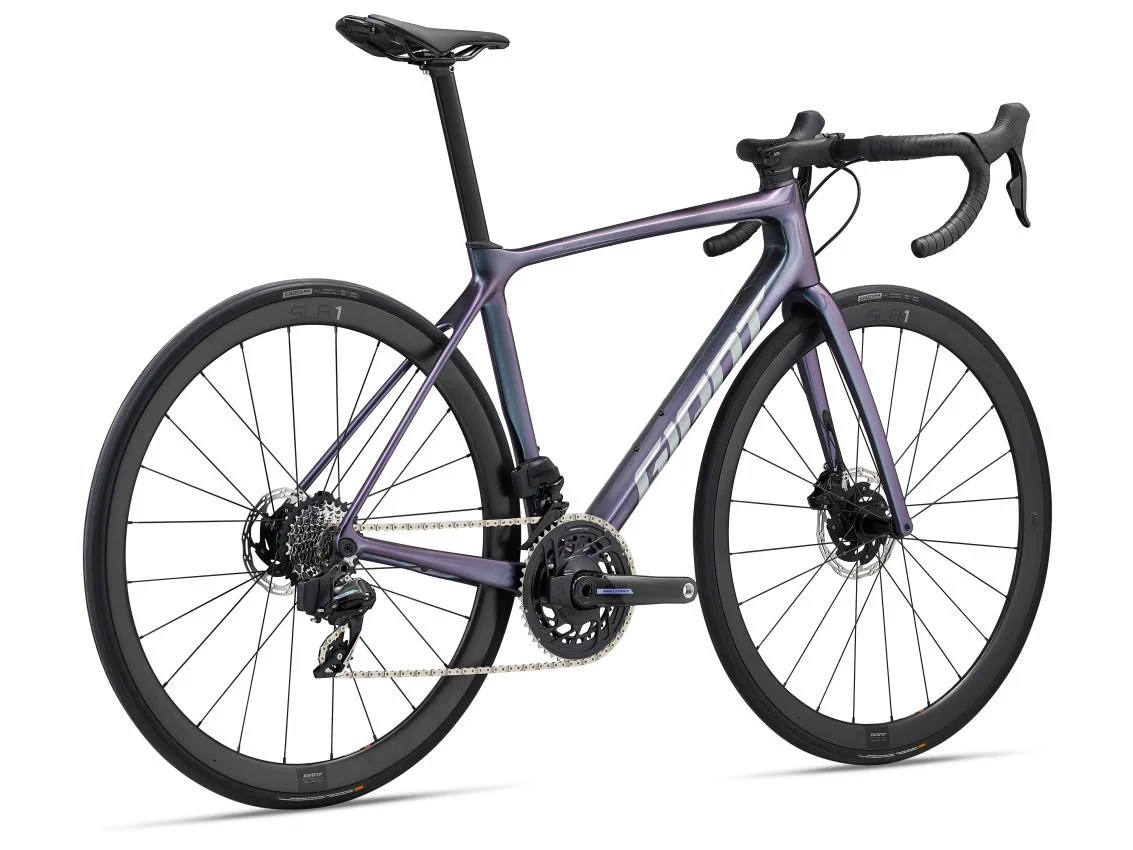

TCR Advanced Pro Disc 0 AXS 2024 – CLIMB, CORNER AND DESCEND WITH GREATER SPEED, MORE CONTROL AND MAXIMUM EFFICIENCY. FROM THE MOUNTAINS TO THE FLATS, IN ALL CONDITIONS, THIS LIGHTWEIGHT COMPOSITE ROAD RACER TAKES YOU TO THE NEXT LEVEL.
Class-leading efficiency
TCR Advanced Pro Disc 0 AXS 2024 – Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
TCR Advanced Pro Disc 0 AXS 2024 – This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance al
SPECS:
-
Sizes: S, M, M/L, L, XL
-
Colours: Gloss Blue Dragonfly/Chrome
-
Frame: Advanced-grade composite, disc
-
Fork: Advanced-grade composite, full-composite OverDrive 2 steerer, disc
-
Shock: N/A
-
Handlebar: Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
-
Grips: Stratus Lite 2.0
-
Stem: Giant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
-
Seatpost: Giant Variant, composite, -5/+15mm offset
-
Saddle: Giant Fleet SL
-
Pedals: N/A
-
Shifters: SRAM Force AXS 2×12
-
Front Derailleur: SRAM Force AXS
-
Rear Derailleur: SRAM Force AXS
-
Brakes: SRAM Force AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
-
Brake Levers: SRAM Force eTap AXS hydraulic
-
Cassette: SRAM Force, 12-speed, 10×33
-
Chain: SRAM Force D1
-
Crankset: SRAM Force D1 DUB, 33/46 with Quarq Dzero power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracket: SRAM DUB, press fit
-
Rims: Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
-
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
-
Spokes: Sapim CX-Ray
-
Tyres: CADEX Race, tubeless, 700x25c (26.5mm), folding
-
Extras: computer mount, factory tubeless set up, 32mm max tyre size
