Description

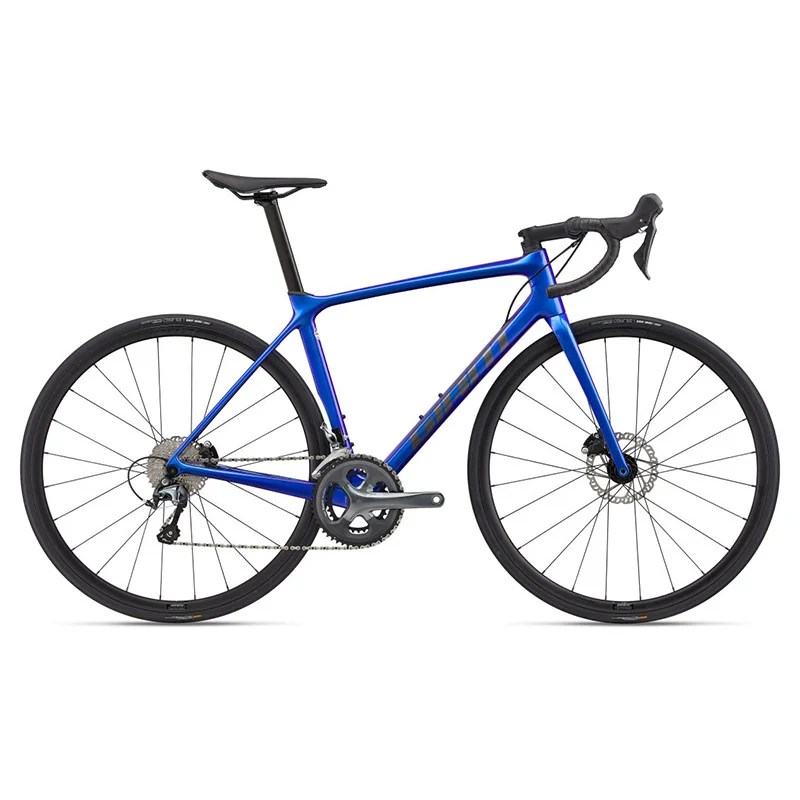

GIANT TCR Advanced Disc 3 GUNNING FOR THE RACE WIN OR DIGGING DEEP FOR A PR, THIS COMPOSITE ROAD RACING BIKE GIVES YOU THE SPEED, EFFICIENCY AND CONTROL TO PUSH IT TO THE LIMIT, AND THEN A LITTLE BIT MORE.
Class-leading efficiency
GIANT TCR Advanced Disc 3 With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
HIGHLIGHTS
GIANT TCR Advanced Disc 3 Reengineered with updated aerodynamic tube shaping in the headtube, downtube and fork, plus added clearance for larger diameter tires, this all-rounder delivers outstanding on-the-road efficiency. The Variant seatpost adds just enough compliance to give it a balanced, race-tuned feel on the road. And with its integrated disc-brake technology, it’s an all-weather, all-conditions race machine.
SPECS:
- Sizes: S, M, M/L, L, XL
- Colours: Gloss Sapphire
- Frame: Advanced-Grade Composite, disc
- Fork: Advanced-Grade Composite, full-composite OverDrive steerer, disc
- Shock: N/A
- Handlebar: Giant Contact – S: 40cm, M: 42cm, M/L: 42cm, L: 44cm, XL: 44cm
- Grips: Stratus Lite 2.0
- Stem: Giant Contact – S: 90mm, M: 100mm, M/L: 110mm, L: 110mm, XL: 120mm
- Seatpost: Giant Variant, composite, -5/+15mm offset
- Saddle: Giant Approach
- Pedals: PEDALS NOT SUPPLIED
- Shifters: Shimano Tiagra 2×10
- Front Derailleur: Shimano Tiagra
- Rear Derailleur: Shimano Tiagra GS max 34T
- Brakes: Shimano Tiagra hydraulic, Giant MPH rotors [F]160mm, [R]140mm
- Brake Levers: Shimano Tiagra hydraulic
- Cassette: Shimano Tiagra, 11-speed, 11×32
- Chain: KMC X10-1
- Crankset: Shimano Tiagra, 34/50 – S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm
- Bottom Bracket: Shimano, press fit
- Rims: Giant P-R2 Disc wheelset (22mm inner rim width)
- Hubs: Giant P-R2 Disc wheelset, 12mm thru-axle
- Spokes: Giant P-R2 Disc wheelset
- Tyres: Giant Course 1, tubeless, 700x25c (effective width 28mm), folding
- Extras: Factory tubeless set up including sealant, 32mm max tyre size
